| Alarm
Security System |
| |
|
| |
|
| |
|
| |
|
|
 |
|
| |
|
A) ) Hard Wire Alarm System |
|
|
| |
|
|
| |
| Cutting-
Edge Technology |
| |
Sensible
Design |
| |
Security
|
|
|
| |
| |
|
|
|
| INHEP
DIGITAL SECURITY (IDS) is a series of hybrid
alarm systems that integrates revolutionary technology
with practical and elegant hardware designs. IDS range
of products combines both powerful microprocessor
capabilities with advanced communications technologies
such as broadband and wireless technologies to implement
its highly sophisticated and functional software system. |
|
|
|
|
|
| |
|
|
| |
| |
 |
| |
| The
IDS408 is a versatile and state
of the art microprocessor based, eight (8) zone
hybrid alarm panel. Most features are optional
and may be programmed either directly through
the keypad or via the telephone system, using
the IDS download software and appropriate modem.
There are eight (8) programmable burglary zones,
a dedicated panic zone, monitored siren output,
auxiliary power outputs and four (4) programmable
outputs which may be programmed to perform various
trigger/switching functions.
|
|
|
| |
| IDS408
Hybrid Control Panel |
|
|
| |
| TECHNICAL
SPECIFICATION |
|
| |
Box
Dimensions |
:
|
242x260x75mm |
| |
Plug
Pack |
:
|
16Vac |
| |
Power
Supply |
:
|
13.8V, 1A |
| |
Quiescent
Current Draw |
:
|
Approx
75mA |
| |
Operating
Voltage |
:
|
9-14V |
| |
Rechargeable
Battery |
:
|
Lead
Acid 12V |
| |
Dynamic
Battery Test |
:
|
No |
| |
Fuses
|
:
|
Siren,
Battery, Aux |
| |
|
|
|
| |
INPUT |
|
|
| |
End
of line Resistor |
: |
3K3 |
| |
Maximum
Keypads |
: |
2 |
| |
Outputs
|
: |
4 |
|
| |
|
| *
For correct operation the IDS408 must
be used in conjunction with the specified transformer/battery
combination and appropriate sensors and signaling devices. |
| |
|
|
| |
|
|
| |
| |
|
| |

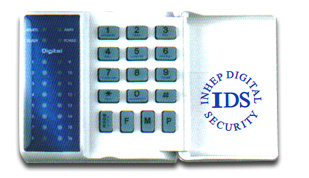

| The
IDS816 is a versatile and state
of the art microprocessor based, eight (8) zone
hybrid alarm panel. It has two partitions and
can be expanded to sixteen (16). Most features
are optional and may be programmed either directly
through the keypad or via the telephone system,
using the IDS download software and appropriate
modem. There are eight (8) programmable burglary
zones, a dedicated panic zone, monitored siren
output, auxiliary power outputs and five (5)
programmable outputs which may be programmed
to perform various trigger/switching functions.
|
|
|
| |
| IDS816
Hybrid Control Panel |
|
 |
| |
| TECHNICAL
SPECIFICATION |
|
| |
Box
Dimensions |
:
|
242x260x75mm |
| |
Plug
Pack |
:
|
16Vac |
| |
Power
Supply |
:
|
13.8V, 1A |
| |
Quiescent
Current Draw |
:
|
Approx
200mA |
| |
Operating
Voltage |
:
|
9-14V |
| |
Rechargeable
Battery |
:
|
Lead
Acid 12V |
| |
Dynamic
Battery Test |
:
|
Yes |
| |
Fuses
|
:
|
Siren,
Battery, Aux |
| |
|
|
|
| |
INPUT |
|
|
| |
End
of line Resistor |
: |
3K3
or 4K7/12K |
| |
Maximum
Keypads |
: |
8 |
| |
Outputs
|
: |
5 |
|
| |
|
| *
For correct operation the IDS816 must
be used in conjunction with the specified transformer/battery
combination and appropriate peripheral sensors and signaling
devices. |
| |
|
|
| |
|
|
| |
| |
|
| |

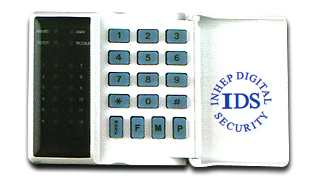

| The
IDS1224 is a versatile, microprocessor
based twelve (12) zone hybrid alarm panel. It
has four (4) partitions and can be expanded
to twenty-four zones. Most features are optional
and may be programmed either directly through
they keypad or via the telephone system, using
the IDS download software and appropriate modem.
There are twelve (12) on board programmable
burglary zones, a dedicated panic zone, monitored
siren output, auxiliary power outputs and six
(6) programmable outputs which may be programmed
to perform various trigger/switching functions.
|
|
|
| |
| IDS1224
Hybrid Control Panel |
|
|
| |
| TECHNICAL
SPECIFICATION |
|
| |
Box
Dimensions |
:
|
242x260x75mm |
| |
Plug
Pack |
:
|
16Vac |
| |
Power
Supply |
:
|
13.8V, 1A |
| |
Quiescent
Current Draw |
:
|
Approx
200mA |
| |
Operating
Voltage |
:
|
9-14V |
| |
Rechargeable
Battery |
:
|
Lead
Acid 12V |
| |
Dynamic
Battery Test |
:
|
Yes |
| |
Fuses
|
:
|
Siren,
Battery, Aux |
| |
|
|
|
| |
INPUT |
|
|
| |
End
of line Resistor |
: |
3K3
or 4K7/12K |
| |
Maximum
Keypads |
: |
16 |
| |
Outputs
|
: |
6 |
|
| |
|
| *
For correct operation the IDS1224 must
be used in conjunction with the specified transformer/
battery combination and appropriate peripheral sensors
and signaling devices. |
| |
|
|
| |
|
|
| |
| |
|
| |

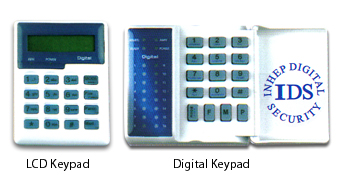

| The
IDS1632 is a versatile, microprocessor
based sixteen (16) zone hybrid alarm panel.
It has eight (8) partitions and can be expanded
to thirty-two (32) zones. Most features are
optional and may be programmed either directly
through they keypad or vie the telephone system,
using the IDS download software and appropriate
modem. There are sixteen (16) on board programmable
burglary zones, a dedicated panic zone, monitored
siren output, auxiliary power outputs and eight
(8) programmable outputs which may be programmed
to perform various trigger/switching functions.
|
|
|
| |
| IDS1632
Hybrid Control Panel |
|
|
| |
| TECHNICAL
SPECIFICATION |
|
| |
Box
Dimensions |
:
|
242x260x75mm |
| |
Plug
Pack |
:
|
16Vac |
| |
Power
Supply |
:
|
13.8V, 1A |
| |
Quiescent
Current Draw |
:
|
Approx
200mA |
| |
Operating
Voltage |
:
|
9-14V |
| |
Rechargeable
Battery |
:
|
Lead
Acid 12V |
| |
Dynamic
Battery Test |
:
|
Yes |
| |
Fuses
|
:
|
Siren,
Battery, Aux |
| |
|
|
|
| |
INPUT |
|
|
| |
End
of line Resistor |
: |
3K3
or 4K7/12K |
| |
Maximum
Keypads |
: |
16 |
| |
Outputs
|
: |
6 |
|
| |
|
| *
For correct operation the IDS1632 must
be used in conjunction with the specified transformer/
battery combination and appropriate peripheral sensors
and signaling devices. |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
